Quick Machine Recovery: A Windows Deployment Guide

A Windows device that cannot boot needs a recovery path that works without the normal desktop, management agent or user workflow. Quick Machine Recovery (QMR) adds a route through Windows Recovery Environment (WinRE) to obtain a Microsoft remediation for a known, widespread startup problem. It is not a replacement for backups, an application-specific repair plan or an administrator who can choose the next recovery action.

ITECS recommendation: deploy QMR as a controlled recovery capability. Prove the recovery network, record who approves a fix, set a bounded waiting period and keep an independent fallback. A policy assignment is not evidence that a stranded device can recover.

Start with the platform and management boundary

Microsoft lists QMR for Windows 11 version 24H2 and later. Keep the edition within its supported lifecycle and install current applicable updates; an old installation carrying the right version name is not a sufficient deployment baseline. See Microsoft's Windows recovery options.

Cloud remediation defaults off on Enterprise, Education, managed Pro and Server 2025. Verify effective settings rather than assuming Home or unmanaged Pro behavior. Microsoft's QMR configuration guide.

For Windows Server 2025, QMR requires the October 2026 security update or later, working WinRE and recovery-network access. Microsoft's current QMR Group Policy procedure is server-specific, not a Windows client recipe. Use a dedicated computer-scoped pilot GPO and the appropriate administrative templates. See the Server 2025 deployment prerequisites.

Build an inventory with edition, build, update level, management authority, recovery-network method and workload owner. Separate user endpoints from servers and identify headless systems. Do not include a critical production server merely because it shares an organizational unit with the pilot.

Separate cloud recovery, automation and approval

Cloud remediation enables Windows Update recovery; auto remediation controls automatic searching versus manual intervention. QMR remains best effort, not guaranteed repair. Microsoft explains the two settings.

For supported Windows clients, the recovery UI is under Settings > System > Recovery > Quick machine recovery. QMR can also be selected from WinRE's troubleshooting options. Supported connectivity is Ethernet or WPA/WPA2 password-based Wi-Fi. If no applicable fix exists, traditional recovery options remain available. See Microsoft's recovery walkthrough.

Our suggested operating model has two owners: endpoint engineering owns readiness and configuration; the incident or change owner decides when an available remediation may reach the affected group. Where those roles are the same person, still record the two decisions separately.

Choose one configuration owner for each device group

The current Recovery CSP lists device-scoped QMR nodes for Pro, Enterprise, Education and IoT Enterprise, including LTSC. Its listed minimum builds are 24H2 26100.8737 and 25H2 26200.8737, and later. These are node applicability requirements, not the original feature's launch baseline. Check each node; the page also contains preview-only settings.

For a local deployment, use these commands in Command Prompt. Each caret continues the command onto the next line:

reagentc.exe ^
  /setrecoverysettings ^
  /path settings.xml

reagentc.exe ^
  /getrecoverysettings

Run elevated, using a reviewed configuration file, not a copied sample with arbitrary timing or credentials. Configuration command reference.

On Server 2025, use Computer Configuration > Administrative Templates > System > Quick Machine Recovery. Microsoft's validated automated configuration enables both cloud and auto remediation. Check gpresult /scope computer /r and the effective recovery settings. Not Configured is not an enforced off state: it returns control to local settings or edition defaults. Server policy behavior.

Prove the recovery network and protect its credentials

Test from WinRE, not just from a working Windows session. Verify the adapter, recovery driver, address assignment, name resolution and access to required Microsoft services. Document what happens at a remote site when the usual VPN, authenticated proxy or employee-assisted Wi-Fi process is unavailable. Do not weaken the production network to make a recovery test pass; design an approved recovery connection.

Microsoft's WinRE networking reference describes Ethernet, preconfigured recovery Wi-Fi and manual selection. Reuse of saved Windows Wi-Fi profiles, including supported certificate-based profiles, is separately documented as preview functionality. Do not assume that preview behavior expands every production device's QMR network support.

Treat recovery XML and settings output as sensitive. Microsoft's configuration example includes a Wi-Fi password, including in readback output. Keep real credentials out of Git, tickets, screenshots and broadly retained command logs. Use restricted deployment storage, redact evidence and assign rotation ownership. A support engineer needs proof that the intended profile is configured, not its password. Configuration and readback examples.

Also verify an authorized path to BitLocker recovery material without copying keys into the rollout checklist. Recovery access should remain possible if the affected endpoint is the administrator's usual workstation.

Set finite retries and deliberate Autopatch approvals

The Recovery CSP's retry interval accepts 0–4,320 minutes; zero means one attempt. Its total wait setting accepts 1–4,320 minutes. Retry must not exceed total wait, and automatic-remediation timing depends on auto remediation being enabled. These are configuration limits, not recommended outage durations. Retry and wait dependencies.

Choose a waiting budget from the workload's recovery objective. A headless branch server may need another scan after Microsoft makes a fix available, but waiting must not consume the entire time reserved for restoration. Name the person who ends the wait and starts the fallback.

In Autopatch, configure QMR approvals through Intune's Windows quality-update policies. New policies default to manual QMR approval. Automatic approval can include a deferral; manual approval can override that delay. Cloud approval takes precedence over client recovery settings, so an enabled device can still wait for approval. Changing an existing policy's approval method requires a new policy. See QMR update management.

ITECS recommends making the pilot's approval owner and backup approver explicit. Audit overlapping assignments before rollout. Cloud quality-policy deferrals override legacy update-ring/CSP deferrals; other client deadlines and grace periods still apply. Do not use an Insider lab to claim end-to-end Autopatch approval validation: Microsoft says Insider devices added to these policies are not enrolled for quality updates. See the quality-update policy limitations.

Pilot safely and distinguish configuration from recovery proof

Start with representative hardware, a remote worker connection and a noncritical server workload where applicable. Preserve a recoverable backup, record the original configuration and arrange console access. Never manufacture a production boot failure to prove a rollout.

Use reagentc.exe /info to inspect WinRE status. This checks configuration, not successful remediation. Microsoft's REAgentC reference documents the command.

Current test-mode limit: Microsoft's WinRE documentation restricts QMR simulation to Windows clients in the Insider Experimental channel. On a suitable disposable pilot, elevated reagentc.exe /SetRecoveryTestmode followed by reagentc.exe /BootToRe prepares the next restart for the simulation. Schedule that restart; it interrupts the session. Do not present this as a supported Server 2025 or general production-client test. See WinRE recovery testing.

For production builds outside that test scope, retain honest partial evidence: policy receipt, effective settings, supported networking and fallback readiness. Mark remediation execution untested until an appropriate supported exercise or actual applicable remediation provides evidence.

Verify the result and investigate failures in order

After an applied remediation, check Settings > Windows Update > Update history > Quality updates. Then test the business workload, not merely the sign-in screen. Microsoft's confirmation step.

The Autopatch QMR status report distinguishes boot failure, remediation in progress and recovery to the main OS. It includes the applicable QMR version, release date and quality-update policy. Data refreshes every four hours using received device data, so do not treat it as a live console.

Use this triage order:

1. Capability: confirm the exact OS/update, templates and working WinRE before troubleshooting a missing control.
2. Effective policy: compare assigned settings with device readback; resolve conflicting management owners instead of repeatedly changing a local toggle.
3. Connectivity: reproduce the recovery-network path and record sanitized failure details.
4. Availability and approval: distinguish no applicable Microsoft fix from an available fix awaiting authorization.
5. Outcome: if Windows still cannot boot, stop at the agreed limit and escalate with the failure timeline and recovery evidence.

Clear, pause and roll back are different actions

For locally configured recovery settings, the documented removal command is reagentc.exe /clearrecoverysettings. Recheck the controlling policy afterward; clearing local configuration is not proof that management will leave it cleared. Remove recovery settings.

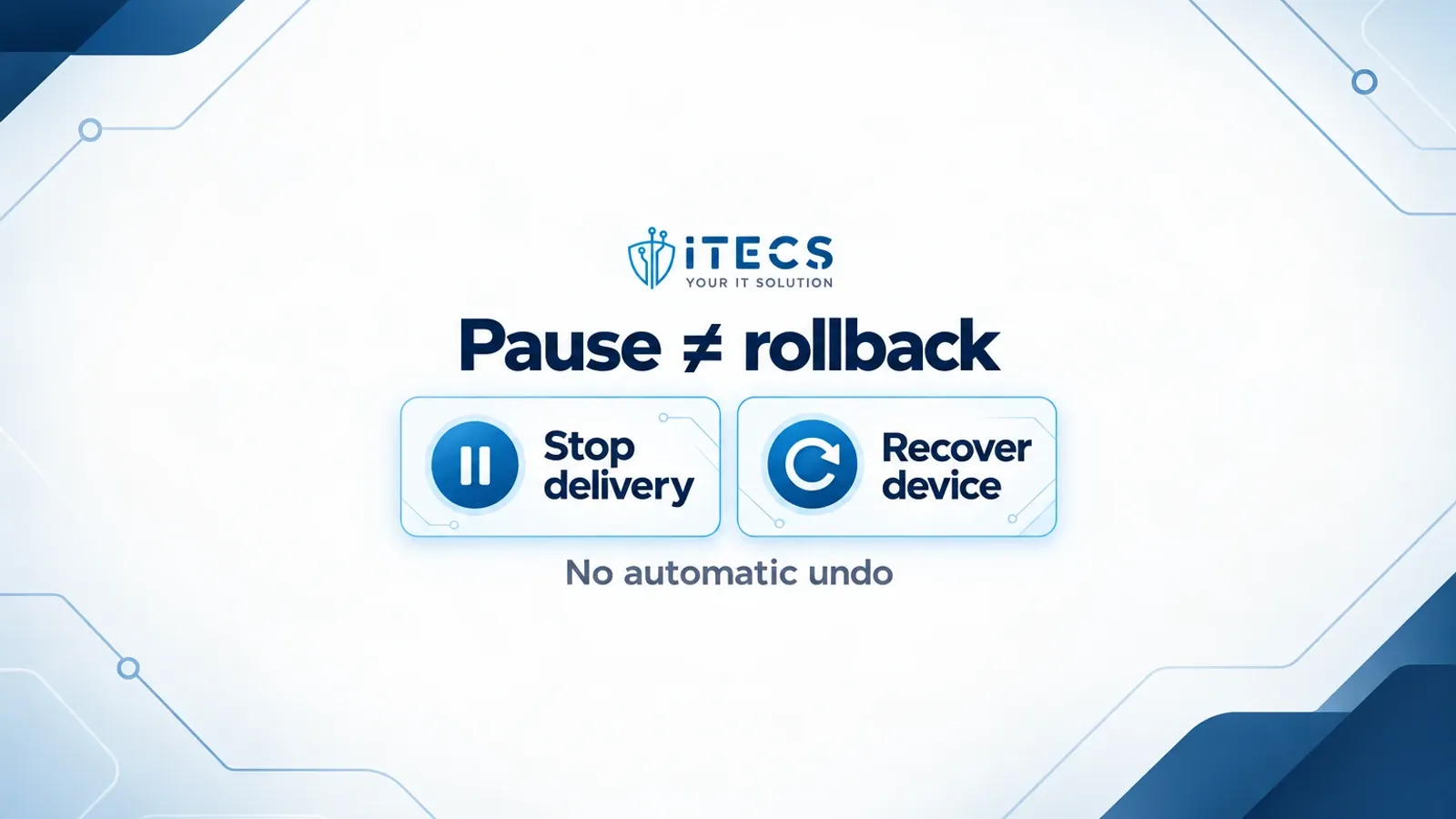

Pausing an Autopatch QMR release revokes approval for further deployment; it does not uninstall a remediation already applied. Devices can take up to eight hours to apply pause settings. Re-approving resumes availability. Pause and resume behavior.

Write the fallback before enabling automation: who can authorize Startup Repair, a supported restore, recovery media or a rebuild; which data must be preserved; and who validates the restored workload. Follow the applicable Windows recovery procedure, not an assumed universal uninstall command. A server's application and database recovery may need a separate runbook.

The completion record should contain sanitized before/after settings, pilot scope, approval ownership, connectivity evidence, the remediation identifier when available, workload checks and unresolved exceptions. Review it when OS builds, recovery networks or policy owners change.

Make recovery part of normal endpoint operations

QMR is most useful when the surrounding work is already organized: maintained endpoints, accessible recovery records, clear incident ownership and a realistic fallback. If your team needs help bringing those responsibilities together, explore ITECS managed IT support or talk with ITECS about your recovery-readiness plan.

Source review: October 23, 2026. Prepared with AI-assisted drafting and a separate automated technical review against Microsoft documentation. This guide is operational planning guidance, not evidence of a tested deployment in your environment. Recheck the linked prerequisites and preview limitations before implementation.
