Network Documentation Checklist for SMB IT Continuity

A network diagram is useful only if someone can find it, trust it, and connect it to the equipment and services the business actually uses. During an outage, the urgent questions are practical: Which circuit serves this location? What depends on this firewall? Where is the approved configuration backup? Who can authorize the next step?

For a small or midsize business, a usable network record should answer those questions without depending on one engineer's memory or one provider's portal. This checklist helps owners, operations leaders, and IT managers build a current, portable record—and test whether it will be useful during an outage, audit, insurance review, or provider transition.

The goal: one authoritative documentation system, clearly assigned owners, a protected recovery copy, and evidence that a new authorized engineer can use it. A discovery scan or a folder full of old diagrams is not enough.

The network documentation checklist

Use the following as a practical minimum, adapted to your locations, cloud services, equipment, and business risks. For each record, identify its owner, source, last verification date, and open exceptions. Mark unknown details explicitly rather than presenting an unverified diagram as current.

1. Logical topology and trust boundaries

• Show internet connections, firewalls, core and access switches, wireless networks, remote-access paths, site-to-site links, and relevant cloud networks.
• Identify network segments and their purpose: staff, servers, guest access, voice, cameras, building systems, or other specialized equipment.
• Show permitted service paths and significant isolation boundaries, including third-party access. Distinguish the normal path from a backup or failover path.
• Use a legend and stable device identifiers. Separate the verified current design from proposed changes.

CIS Safeguard 12.4 calls for maintained architecture diagrams or other network documentation. It is a useful foundation for this work, not proof that a particular diagram satisfies every audit or insurance requirement. See CIS network infrastructure documentation guidance.

2. Physical racks, patching, and power

• Record each site's communication rooms, rack identifiers, rack positions, device asset tags, and access arrangements.
• Map switch ports to patch-panel ports, wall outlets, access points, uplinks, and connected equipment. Label both ends consistently.
• Include power feeds, UPS and power-distribution connections, redundant-power arrangements, and known shared failure points.
• Keep dated photographs where helpful, but do not use photos instead of a searchable port map. Protect images that reveal sensitive locations, access information, or equipment details.

A good usability check is whether another authorized engineer can trace a documented connection without unplugging anything or guessing which unlabeled cable matters.

3. Subnets, addresses, and naming

• List IPv4 subnets and IPv6 prefixes where used, VLAN identifiers, gateways, and the location or purpose of each allocation.
• Record DHCP scopes, exclusions and reservations, static assignments, DNS servers and critical records, VPN address pools, and relevant public-address/NAT mappings.
• Identify who allocates addresses and which system is authoritative. Track conflicts, overlapping ranges, and temporary assignments awaiting removal.

Keep intended allocations separate from what a discovery tool last observed. A device appearing at an address does not establish that the assignment is approved or permanent.

4. Circuits, carriers, and service vendors

• Record circuit IDs, service addresses, carrier and reseller relationships, demarcation points, handoff details, contracted bandwidth, and primary or backup role.
• Identify the account owner, approved support contacts, escalation method, service terms, renewals, and cancellation-notice dates.
• Document known physical-path or upstream dependencies. Different carrier names do not by themselves establish independent failure paths; record what has actually been verified.
• Link relevant contracts and support records through controlled access rather than copying account credentials into the network diagram.

5. Assets, warranties, firmware, and support deadlines

For each important device, capture manufacturer, model, serial number, role, location, owner, management reference, installed firmware, support entitlement, warranty expiration, and vendor-announced end-of-support dates. Include spare hardware and the controller or management service needed to operate it.

Do not treat warranty, subscription renewal, and software support as the same date. Record the vendor source and when the lifecycle information was checked. Assign a replacement or exception owner before an unsupported dependency becomes an emergency. CISA's communications-infrastructure hardening guidance recommends monitoring vendor end-of-life announcements and governing network configuration changes.

6. Business-service dependencies

Start with a business activity—taking payments, receiving calls, accessing files, or processing orders—and trace the supporting network, DNS, identity, internet, cloud, and power dependencies. Record the business owner, acceptable workaround, recovery priority, and who approves restoration. Have the owner confirm these decisions; do not infer them from device importance alone.

Include dependencies of the recovery tools themselves. If monitoring, the password vault, documentation, and remote access all require the same identity service or firewall, the recovery plan needs an approved alternative way to reach essential information.

7. Configuration backups and restoration instructions

• Record the protected backup location, backup owner, collection schedule, most recent successful capture, and the approved configuration version.
• Document compatible hardware and software versions, required licenses or tools, restoration order, verification steps, and rollback conditions.
• Retain evidence of a safe restore test using a lab, spare device, or explicitly approved maintenance exercise. A completed export alone does not prove restorability. After suspected compromise, have the incident-response lead validate a trusted recovery point before restoring a configuration.
• Flag devices for which configuration export is unsupported or incomplete, and record the alternative recovery method and its owner.

Treat configuration files as sensitive: they can contain credentials, keys, certificates, or information useful to an attacker. Keep complete recovery backups encrypted in restricted storage; put only a sanitized reference in general documentation. Do not strip required secrets out of the sole recovery backup and then assume it remains usable. CISA also advises encrypted transport for network configurations rather than plaintext email or insecure transfer methods in its hardening guidance.

8. Change history and approved exceptions

Record what changed, why, who approved and performed it, the date, affected services, validation results, and the previous approved state. Link the change ticket to the diagram, address record, and configuration version it affected. Emergency changes need follow-up documentation, not a permanent exemption.

Every exception should identify its business reason, risk, compensating measure, owner, review date, and intended resolution. This is where people preserve the rationale that a discovery tool cannot provide.

9. Recovery contacts and decision authority

Maintain role-based contacts for internal IT, the MSP, carriers, key application vendors, facilities, leadership, and incident-response support where applicable. Include a backup contact and an independently reachable communication method. Identify who can authorize spending, service interruption, replacement equipment, and provider access.

Verify contacts periodically. A list is not actionable if the only approver has left or every contact is stored inside the system currently unavailable.

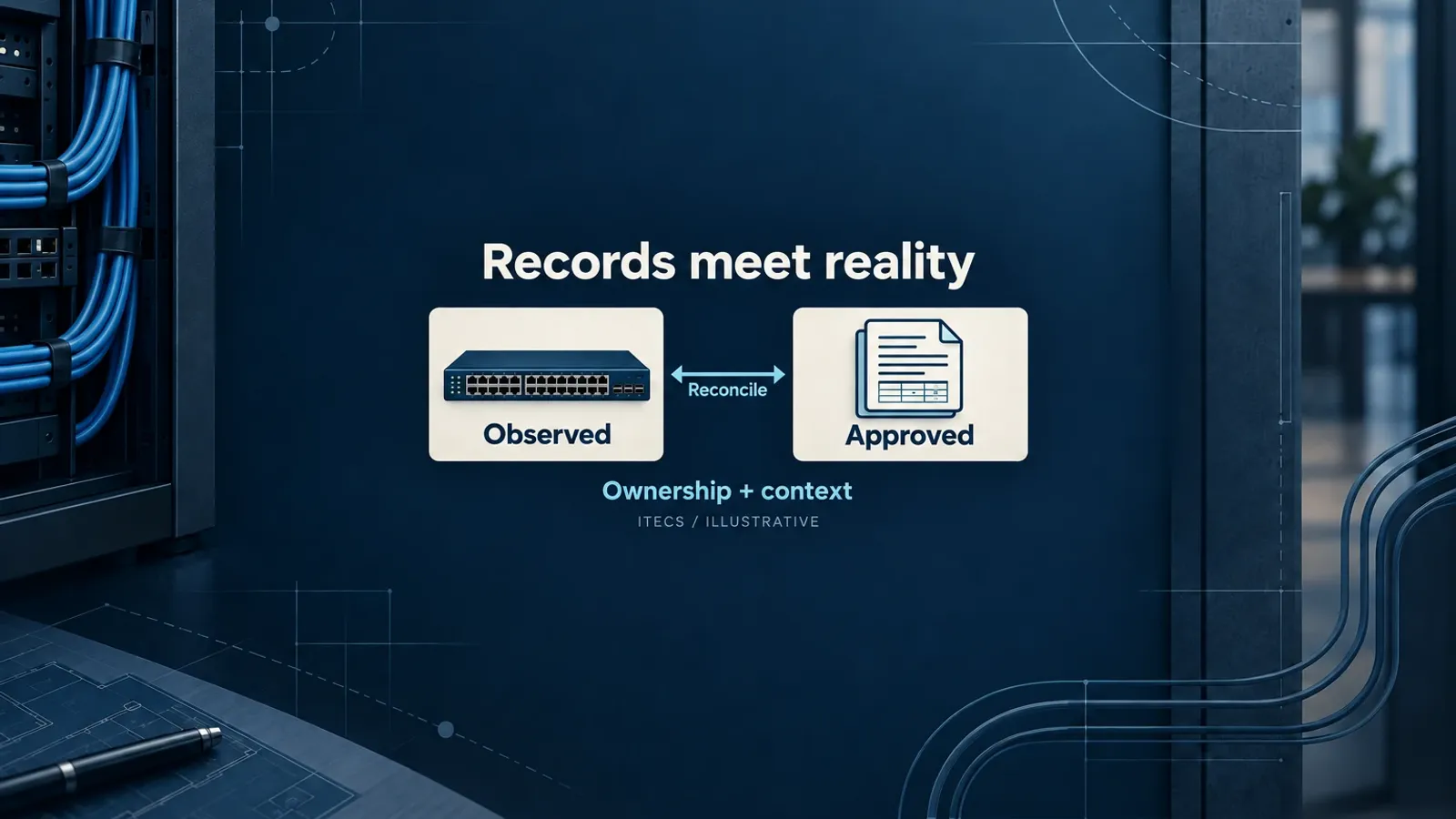

Let discovery find changes; let people decide what they mean

Automated discovery, monitoring, controller inventories, and DHCP or management-system records can help identify devices, address changes, interfaces, software versions, and observed availability. Their coverage depends on placement, permissions, supported equipment, and when a device is connected. Record those limits and the last successful collection time.

CIS Control 1 describes asset inventory as a maintained combination of manual and tool-generated information. Its scope includes physical, virtual, remote, and cloud assets. That is broader than a scan of one office subnet. See CIS enterprise asset inventory guidance.

Keep these responsibilities distinct:

• Tools observe: a new switch, a changed firmware version, an unseen endpoint, or a configuration difference.
• People reconcile: whether the change is authorized, which service it supports, who owns it, and whether the documented recovery plan still works.
• The record preserves: the approved state, the latest observation, unresolved differences, and the evidence used to resolve them.

For example, NetBox's own source-of-truth design guidance distinguishes desired state from operational state and calls for human vetting of imported data. The useful principle is product-independent: do not automatically overwrite an approved baseline with whatever a device reports.

Use only authorized collection methods appropriate to the environment. Coordinate active discovery around sensitive, legacy, or operational equipment; documentation work is not permission for an uncontrolled scan or configuration change. Network monitoring can support the process, but it cannot supply missing business ownership or approval.

Choose one authoritative repository—with controlled history

Give the organization a designated home for its network record. It may be a documentation platform with linked inventory, address-management, and backup systems rather than one physical file. Define which system owns each field so conflicting spreadsheets and provider exports do not become competing authorities.

Use a consistent record format: identifier, purpose, location, technical owner, business owner, source, observed date, verified date, approved version, dependencies, recovery reference, and open exceptions. An automated discovery timestamp is not a human verification date.

Require named accounts, least-privilege access, appropriate multifactor authentication, access reviews, and a change history. Separate editing from approval where practical. Use built-in version history or a private, access-controlled version-control workflow for sanitized diagrams and text. Do not put passwords, private keys, recovery codes, or unsanitized configuration exports in Git—even a private repository. Removing a secret from the latest file does not necessarily remove it from history.

Keep credentials in the approved vault and reference the relevant entry or access procedure. Documentation should explain how an authorized person obtains access, not disclose the secret to everyone who can read a diagram.

Keep a secure copy outside the normal failure path

CISA's #StopRansomware Guide recommends detailed network diagrams and records of information flows, secure storage, and offline backups and hard copies. For an SMB, the practical question is whether approved responders can reach the essential record when normal systems are unavailable.

Create a controlled recovery export containing the essential diagrams, asset and circuit lists, dependency notes, contacts, and recovery procedures. Include its version, export date, custodian, and the scope of what it omits. Keep sensitive configuration backups and secrets under their separate controls.

Protect the export with encryption and restricted custody, and make sure the authorized recovery process can obtain the necessary decryption material without relying exclusively on the failed network or identity system. A second cloud folder using the same sign-in and failure path is not automatically an independent recovery copy. Maintain an offline or otherwise isolated copy appropriate to the risk; a cloud copy alone is not offline.

Test retrieval from an approved recovery device and connectivity path. Include access to the copy and its keys in the exercise without exposing secrets. Protect printed records in controlled physical storage, date them, and securely retire obsolete copies according to policy. Out-of-band access does not mean publicly accessible access.

Make portability and provider handover part of the agreement

Before signing or renewing an IT agreement, confirm what the business can obtain, in which formats, and on what timetable. These are contract questions to resolve with the provider and appropriate business or legal reviewers—not rights to assume from this checklist.

• Can the business export its diagrams, inventories, address records, change history, and recovery procedures in usable formats, including editable source where agreed?
• Who owns the records, subscriptions, carrier accounts, configuration backups, and permissions needed to use them?
• What assistance, fees, notice periods, and licensing restrictions apply during a transition?
• How will company-specific records and access be transferred securely without exposing another client's information or a provider's unrelated internal data?
• Who verifies completeness, tests readability, handles credential transfer through the approved vault process, and revokes outgoing access after the authorized handover?

Ask for a sample export before a crisis. A PDF can be a useful emergency reference, but it is not necessarily an editable inventory or a complete configuration backup. Verify what the receiving team can actually use.

Reconcile quarterly—and whenever something important changes

Make documentation part of change completion. Update affected records after approved changes and resolve emergency-change notes promptly. Do not wait for the next quarterly meeting to record a replaced firewall or changed circuit.

As a practical operating recommendation, schedule a quarterly reconciliation across discovery results, diagrams, configurations, vendor records, and business-owner expectations. CIS 12.4 specifies annual review or review after significant changes; the quarterly cadence here is an ITECS recommendation, not a universal legal or insurance requirement.

Track useful measures: critical records overdue for verification, unknown owners, unexplained device/configuration differences, configuration backups not restore-tested, unresolved lifecycle exceptions, and the date of the last recovery-copy retrieval test. Assign an owner and deadline to gaps. Do not convert documentation completeness into an unsupported promise of uptime or insurability.

Run the new-engineer usability test

Give an authorized engineer who did not write the records a realistic scenario: the office has lost connectivity and the usual engineer is unavailable. Use a tabletop or isolated exercise; do not disconnect production, alter routes, restore devices, or call a carrier to make a change as part of this documentation test.

Ask the engineer to:

1. Find the current approved network record and verify its date and scope.
2. Trace one important business service through its network and supporting dependencies.
3. Identify the primary circuit, physical handoff, relevant device, and vendor escalation contact.
4. Find the appropriate configuration backup, restoration instructions, and change-authority contact without opening or exposing secrets unnecessarily.
5. Retrieve the protected recovery copy through the approved alternative path and explain any limitation or missing prerequisite.

Record where they hesitate, what they cannot find, and which assumptions require the original engineer to explain. Measure retrieval time as a baseline for improvement, not a recovery-time guarantee. A useful pass means the engineer identifies the correct records and dependencies, knows who can approve action, and can explain the next safe step without guessing.

Start with the business's most critical service and close the gaps that test exposes. Then extend the same discipline to other locations and services. If your team needs help organizing that work, explore ITECS managed network services or discuss a documentation and continuity review.

Editorial note: Prepared with AI assistance using primary guidance checked September 25, 2026. The checklist and usability test are practical recommendations, not a certification or assurance of insurance coverage. No client network was inspected or changed for this article. Confirm contractual, regulatory, and insurer-specific evidence requirements with the responsible parties.
